PVC U GUARD
CDF Utility Supply offers Power Mold® Pole Risers complete with exclusive U Guard reducer boots. This innovative U Guard system has been developed specifically for the Canadian Market.
The proprietary system is modular, and consists of a length of PVC U Guard coupled with our custom reducer boot to render an elegant one-piece system. This has been built to withstand Canada’s extreme all season weather conditions.
CURRENTLY UTILIZING
TESTED
• Quality Testing Standards (NEMA TC 19)
• Durable, Flexible & Safe
• Ozone Resistance Tested
• Resistance in Compliance With UL 651
• Electrical Proof Tested
• Dimensional Tested
• Visual Inspection Tested
• Top Quality Safety Solutions
BENEFITS
Non-Conductive – No Need For Expensive Ground Cost
Non-Corosive – No Maintenance
Affordable – Cost Effective Vs. Traditional Steel U Guard
Lightweight – Easy Transport For Lineman

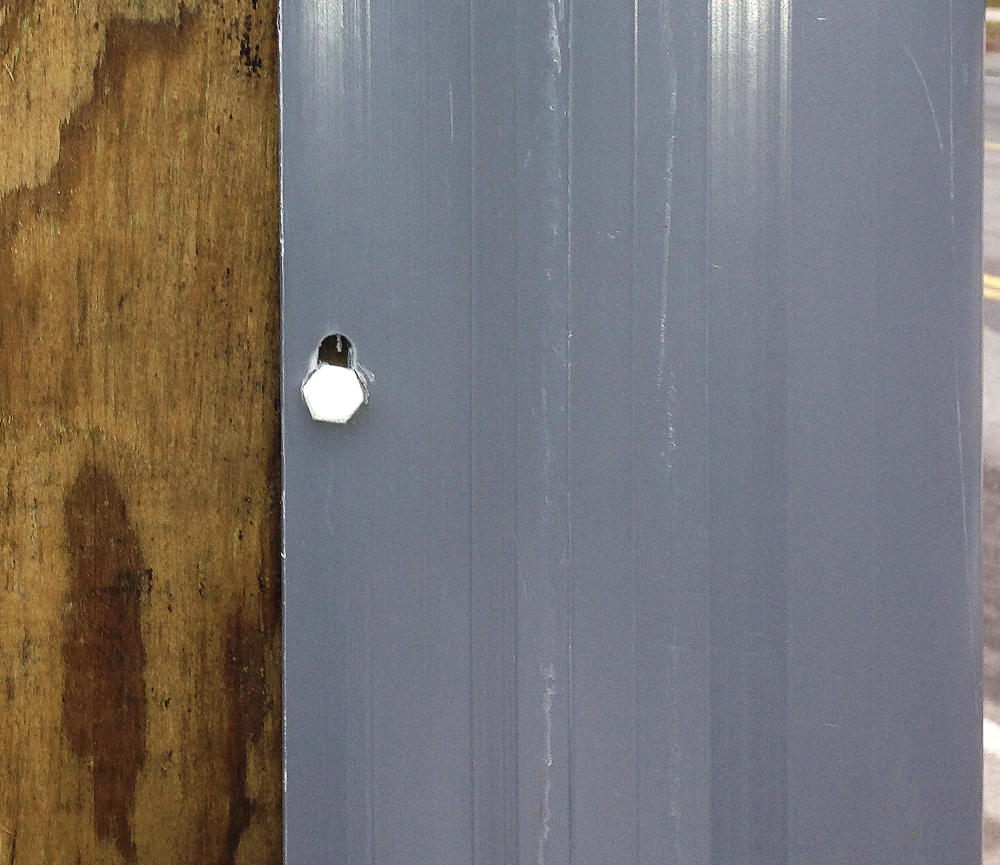

Easy Installation – Fasten With Standard Lag Screws
Crush Resistant – Excellent Cold Weather Impact
Reducer Boot – Used To Step Down To Smaller Size U Guard
Universal Boot – Used To Step Down To Smaller Size U Guard

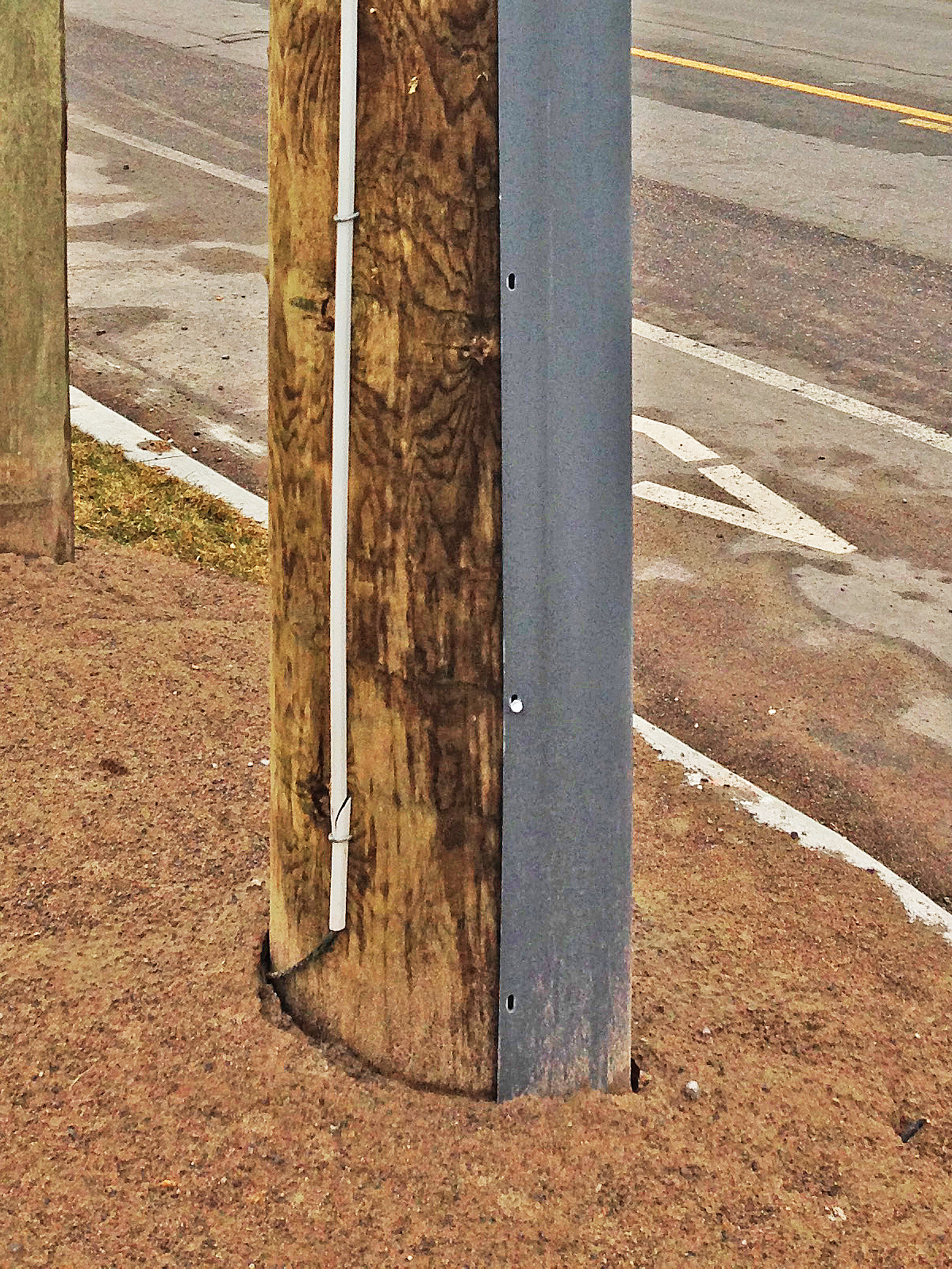

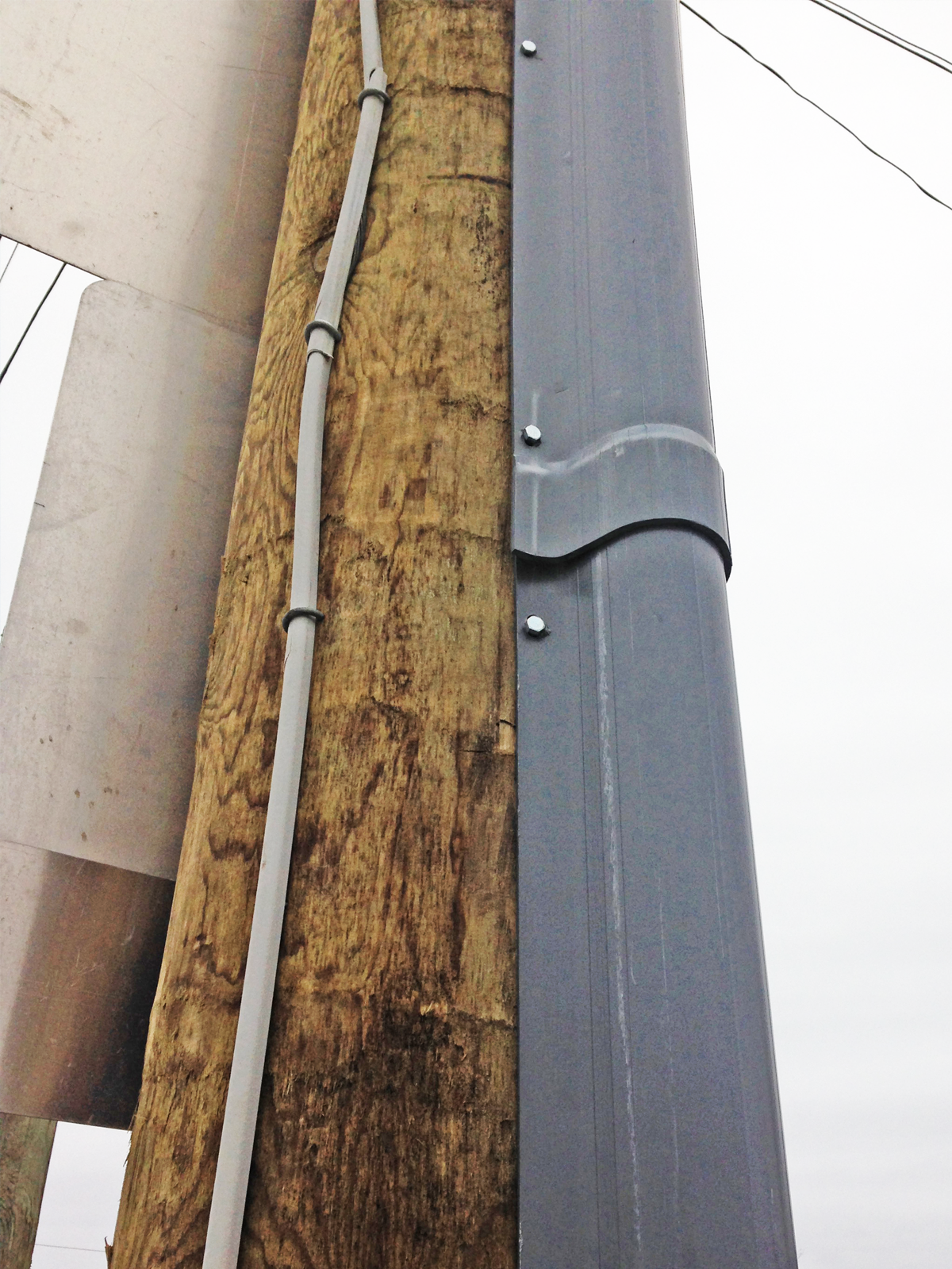

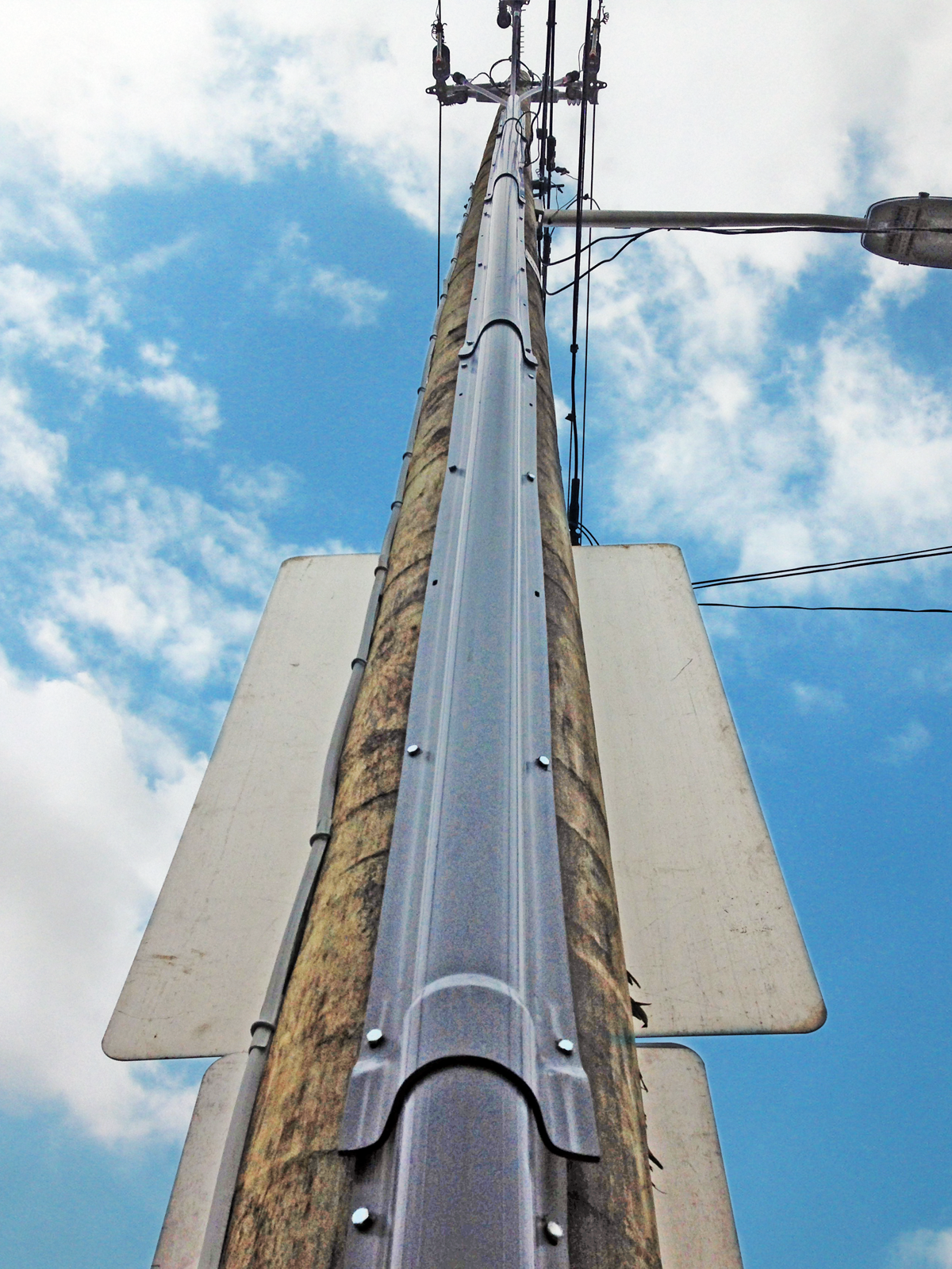

PVC U GUARD IN THE FIELD
SKU / ACCESSORIES

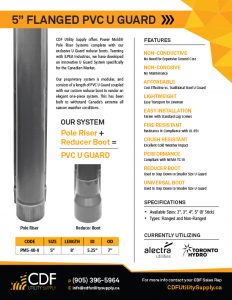

Flanged PVC U Guard SKU
Size
2″
3″
4″
5″
6″
Code
PM2-40-8
PM3-40-8
PM4-40-8
PM5-40-8
PM6-40-8
Length
8′
8′
8′
8′
8′
ID
2.25″
3.25″
4.25″
5.25″
6.25″
OD
4″
5″
6″
7″
8″
Non-Flanged PVC U Guard SKU
Size
2″
3″
4″
Code
PM2-2150-8
PM3-3150-8
PM4-4180-8
Length
8′
8′
8′
ID
2.25″
3.25″
4.5″
OD
4″
5″
5.25″
1″ PVC U Guard SKU
Size
1″
Code
PM1-1150-8
Length
8′
ID
1.25″
OD
1.5″
BOOTS AND REDUCERS
Universal
Reducer Boot
Reducer Boot
Vented
Reducer Boot
Reducer Boot
Small Flanged
Step Reducer
Step Reducer
Non-Flanged
Reducer Boot
Reducer Boot
PVC U GUARD SPECS
APPLICATIONS
• Power
• Telecom
• CATV
INSTALLATION
SIZES: 1″, 2”, 3”, 4”, 5″, 6″
LENGTHS
• 8′
